AFINGEN® · APFL PLATFORM
Tissue-Targeted Gene Regulation for Agricultural Traits
Advancing crop growth, seed production, root development, and biomass quality through AFINGEN® Positive Feedback Loop (APFL) biotechnology.
Precision Through Tissue-Targeted Regulation
Many valuable agricultural traits depend on interconnected gene-regulatory pathways. Broad manipulation of master transcription factors can have unwanted effects outside the intended tissue.
AFINGEN® APFL uses an engineered positive-feedback approach designed to modulate selected transcription-factor expression in plant tissues, including vascular tissue. The technology targets beneficial crop traits through controlled gene-expression engineering.
AFINGEN® is developing crop-specific applications of APFL technology, supported by targeted experimental evaluation and trait optimization.
Tissue-specific expressionTranscription-factor regulationTrait research

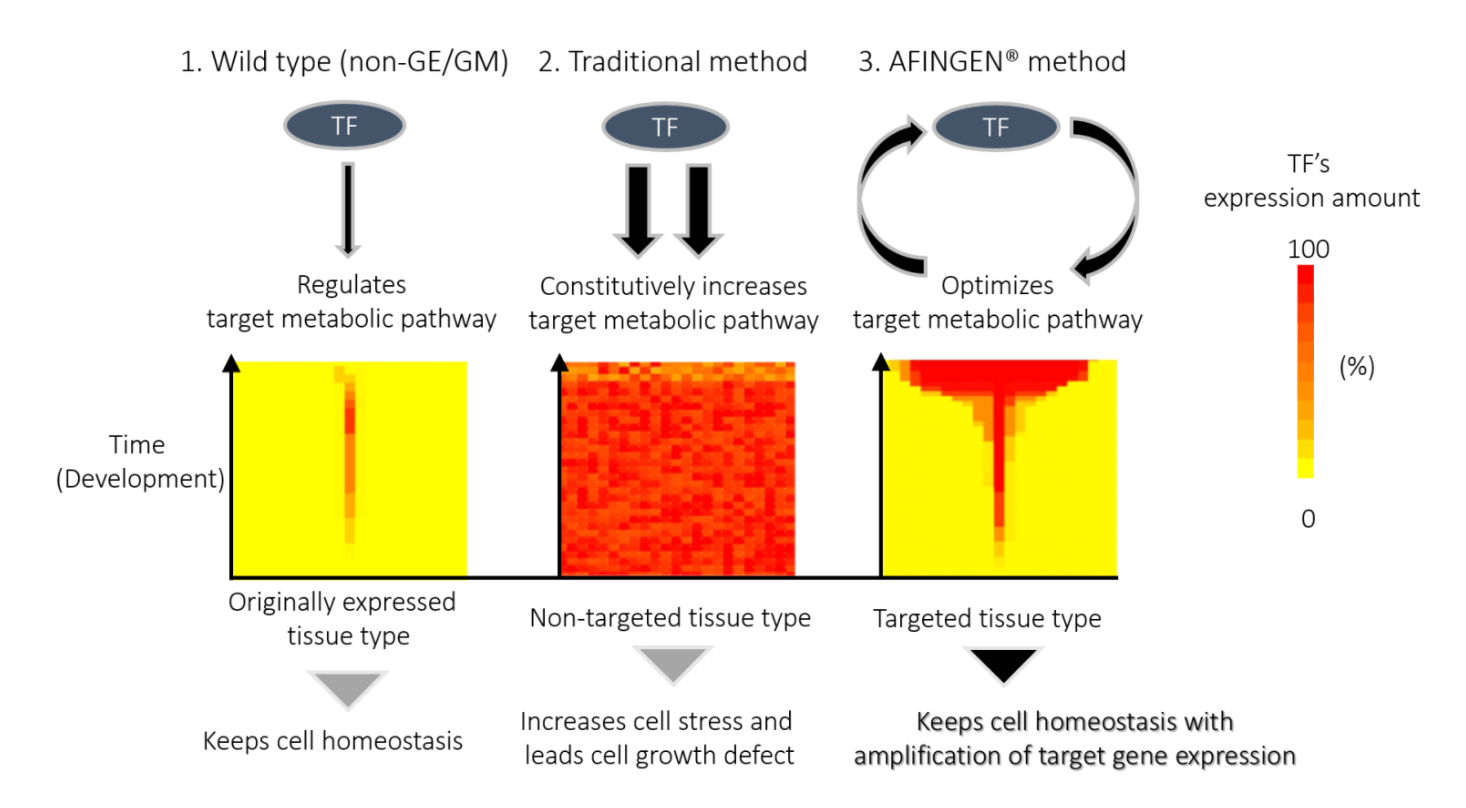

Figure: Schematic representation of the AFINGEN® APFL concept for modulating master transcription factor (TF) expression through a positive feedback loop. (1) Wild type maintains normal cellular homeostasis. (2) Constitutive manipulation of target metabolic pathways can increase cellular stress and impair growth. (3) The AFINGEN® approach is designed to amplify tissue-specific gene expression while preserving overall plant homeostasis.
Four Trait Areas Investigated
Experimental lines discussed in AFINGEN® patent materials include switchgrass, canola, and alfalfa. These experiments, described in our patents, are the starting point for testing APFL in specific crops.
Crop Improvement
Growth and Biomass
Research in engineered switchgrass has examined vegetative development and biomass accumulation relative to controls. These findings inform crop-specific development and evaluation for additional agricultural applications.

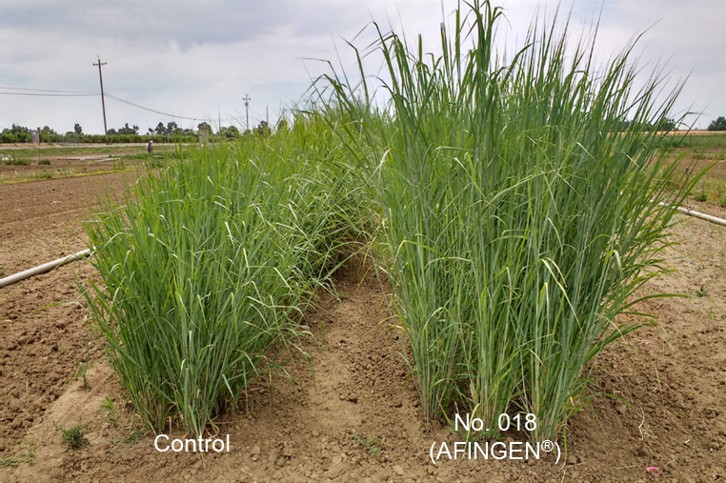

Figure: Representative switchgrass biomass from a line engineered using AFINGEN® technology. The control line contains an empty vector; the engineered line contains AFINGEN® construct No. 018. Related experimental data and analyses are described in the APFL patent family, including U.S. Patent Nos. 11,613,760 and 12,203,084.
Seed & Grain Production
Seed and Grain Yield
The source experiments describe switchgrass seed and canola grain/pod observations in selected lines. These experimental findings provide a foundation for further crop-specific development and field evaluation.

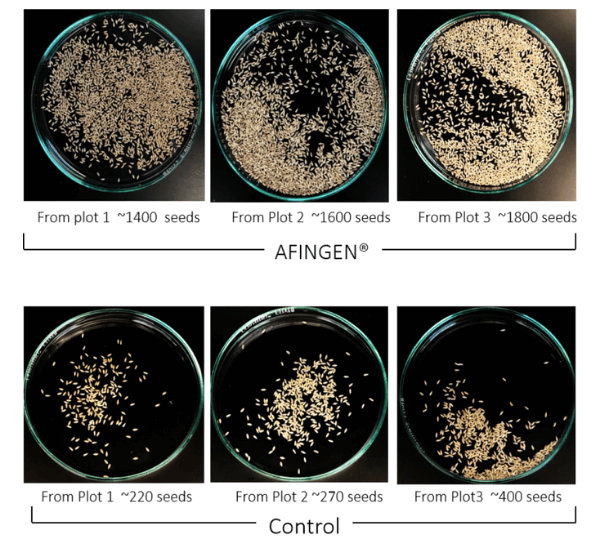

Figure: Comparison of mature seed collected from control and AFINGEN® switchgrass plants grown in a greenhouse. The six photographs show total seed collected from selected event plots. Approximately 30 plants were evaluated in each control and engineered plot. Statistics are in patent application WO2019148193A1.

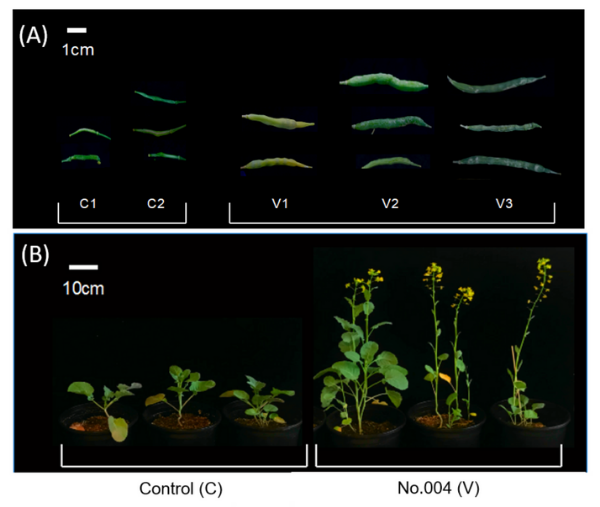

Figure: In the experiment described in published patent application WO2019148193A1, canola (Brassica napus cv. Westar) engineered with APFL construct No. 004 exhibited approximately twice the plant height of vector-control plants at 130 days after regeneration. (A) Representative grain pods from control plants (C1-2, left) compared with plants engineered using AFINGEN® construct No. 004 (V1-3, right). (B) Representative control plants (left) compared with plants engineered using AFINGEN® construct No. 004 (right). Statistics are in patent application WO2019148193A1.
Root Development
Root Development
Patent-described experiments with engineered alfalfa reported increased vegetative biomass yield and root development relative to control plants under controlled growth conditions.

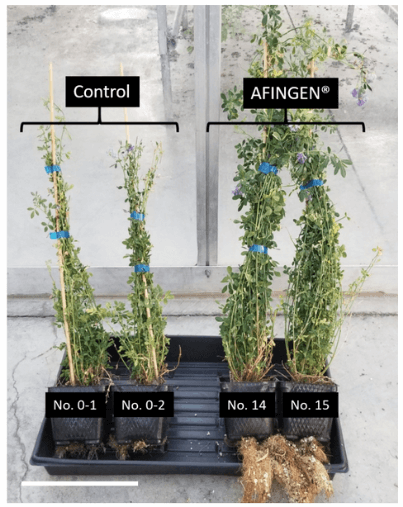

Figure: Increased vegetative tissue yield and root growth in alfalfa (Medicago sativa) engineered using AFINGEN® technology. Control lines No. 0-1 and No. 0-2 containing an empty vector are shown on the left; lines engineered with AFINGEN® constructs No. 14 and No. 15 are shown on the right. Statistics are in patent application WO2019148193A1.
Biomass Quality
Biomass Processability and Digestibility
In patent-described switchgrass experiments, selected engineered lines showed reduced lignin content and altered cell-wall characteristics relevant to biomass processing and digestibility.
These findings support further evaluation of biomass quality and processing applications at commercially relevant scales.

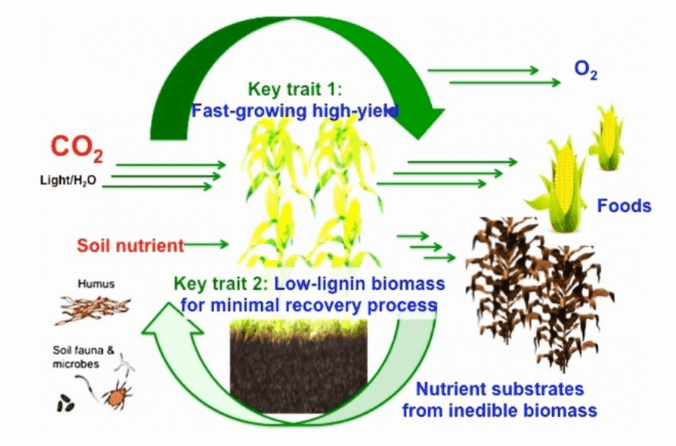

Research summary: AFINGEN® research has evaluated a plant biotechnology platform designed to modulate tissue-specific gene expression while maintaining overall plant performance. Across evaluated experimental crop systems, observed traits have included faster growth, higher biomass or seed yield, enhanced root development, and reduced lignin in selected tissues. AFINGEN® is extending these approaches to food, feed, fiber, and fuel crops to explore applications in productivity, biomass quality, and nutrient recycling.
From Research Trait to Use Case
AFINGEN® is advancing commercial development pathways for plant lines combining productivity-related traits with suitable biomass characteristics. Priority applications include forage and feed, seed and grain production, and biomass conversion.
Commercialization programs would assess trait stability, multi-environment performance, applicable crop safety and quality requirements, and relevant regulatory pathways.
Technology Evidence & Intellectual Property
The underlying technology and selected experimental systems are described in published patent records. AFINGEN®’s issued patents and published applications provide a documented intellectual property foundation for technology development, industry collaboration, and licensing.
U.S. Patent 11,613,760 · U.S. Patent 12,203,084 · Published application WO2019148193A1
Published research and patent materials document AFINGEN® APFL technology in selected experimental crop systems. The platform welcomes research and industry partnerships focused on crop-specific trait evaluation and agricultural applications.
Explore collaboration
Discuss Crop-Specific Research Applications
AFINGEN® welcomes seed companies, crop developers, agricultural technology partners, and prospective licensees to explore crop-specific research, joint development, and commercial applications of the APFL platform.
